YOKOGAWA DIGITAL INPUT MODULE ADV159-P00

Name: YOKOGAWA DIGITAL INPUT MODULE ADV159P00
Brand: YOKOGAWA
Price: 1 USD

Wholesale YOKOGAWA DIGITAL INPUT MODULE ADV159-P00 from china suppliers

Brand Name : YOKOGAWA

Model Number : ADV159-P00

Certification : CE

Place of Origin : Indonesia

MOQ : 1pc

Price : negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : on request

Packaging Details : standard carton packing

Manufacturers : Yokogawa

Number of I/O channels : 32-channel input

Signal isolation : Isolated channels

Input contact rating : 5 V DC, 20 mA or more

Pushbutton input function : Supported

nput response time : 8 ms (for status input)

Minimum ON detection time : 20 ms (for pushbutton input)

Weight : 0.4 kg

Contact Now

YOKOGAWA DIGITAL INPUT MODULE ADV159-P00

Digital I/O Modules (CENTUM-ST Compatible)

The Digital I/O Modules (CENTUM-ST Compatible) receive contact or voltage status signals from the ﬁeld, and/or output status signals to the ﬁeld via transistor contacts.

Item	Speciﬁcations
Model	ADV859	ADV159	ADV559
Number of I/O channels	16-channel input, 16-channel output	32-channel input	32-channel output
Signal isolation	Isolated channels	Isolated channels	Isolated channels
Input signal	Contact input: OFF signal 100 kΩ or more ON signal 200 Ω or less Minimum current value when contact is short- circuited: 1.25 mA Voltage input: OFF signal 4.5 to 25 V DC ON signal ±1 V DC, 200 Ω or less
Input contact rating	5 V DC, 20 mA or more
Pushbutton input function	Not supported	Supported	–
Input response time	8 ms (for status input)	8 ms (for status input)
Minimum ON detection time	–	20 ms (for pushbutton input)	–
Maximum ON/OFF cycle		25 Hz (for pushbutton input)
Output signal	Transistor contact	–	Transistor contact
Output contact rating	Inductive load, resistive load: 30 V DC, 100 mA (*1)	–	Inductive load, resistive load: 30 V DC, 100 mA (*1)
Output response time	16 ms or less	–	16 ms or less
Pulse width	8 ms to 7200 s		8 ms to 7200 s
Pulse width resolution	8 ms, add max. 1ms for ON/OFF delay time		8 ms, add max. 1ms for ON/OFF delay time
Maximum current consumption	450 mA (5 V DC)	330 mA (5 V DC)	570 mA (5 V DC)
Weight	0.3 kg	0.4 kg	0.3 kg
External connection	Dedicated cable (KS2)	Dedicated cable (KS2)	Dedicated cable (KS2)
Compatible card	ST2 compatible	ST3 compatible	ST4 compatible

Related Part Number:

AED5D-00

AIP601

AIP826

AIP827-2

AIP830-101

AIP830-101-EIM-VESA

AKB331-M020

ALE111-S50

ALE111-S51

ALR121-S00

AMN33

ATD5A-00

ATK4A-00

AX01C-C010-CH

AX01C-C015/CH

AXG080-GA000AA1AH112B-2JA11-CH

AXG100-GG000BA1AH114B-NNNNNCH

AXG150-CGNF2AA2AH214BNNNNN-GRH-CH-L2

AXG4A

AXG4A-CNF2121JA11/CH

AXG4A-CNF2141JA11-CH-L2

AXG4A-G000141JA12-CH

BT200-N00

CP451-10

DO30G

E7042UD

YOKOGAWA DIGITAL INPUT MODULE ADV159-P00

Product Tags:

YOKOGAWA analog input module

DIGITAL analog input module

ADV159-P00

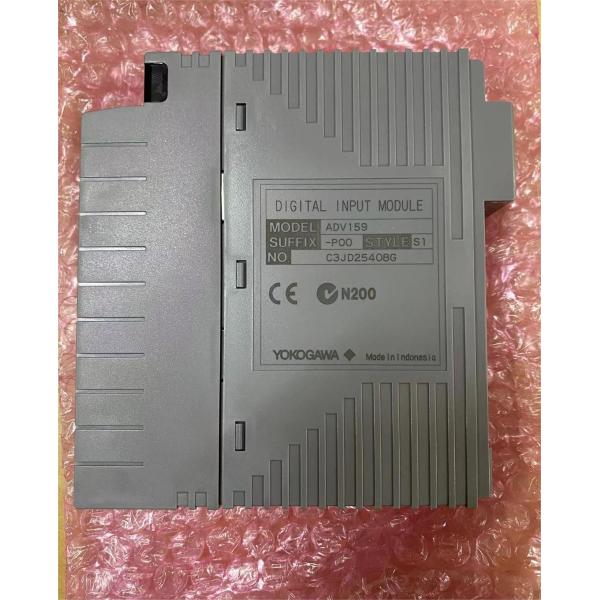

YOKOGAWA DIGITAL INPUT MODULE ADV159-P00 Images
